Evaporation Crystallization

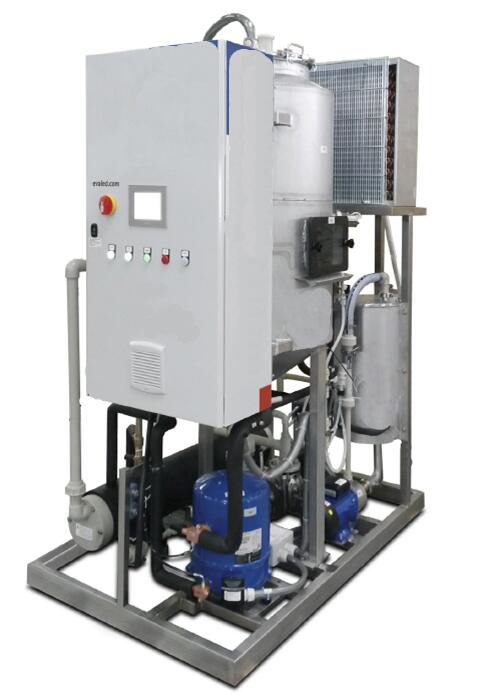

Low temperature evaporation system

Operation principle and process of low temperature evaporator

The equipment is fully automatic. When the original water barrel reaches the medium level, the evaporator will automatically feed water, the water pump will run to generate vacuum, and the compressor will run to generate heat to heat the waste water in the evaporation tank. In the vacuum state, the temperature of waste water will rise to 30 ℃, and the waste water will start to evaporate, and the preheating is completed.

Advantages of low temperature evaporator

1. The evaporation temperature is low, so it is not easy to produce scale, and the water quality is good.

2. There is no need for flocculation before evaporation, no need for Biochemistry after evaporation, and the wastewater treatment process is simple;

3. The system is fully automatic, remote monitoring, low energy consumption;

4. Module design, short delivery time;

5. The low-temperature heat pump technology is originated from the principle of industrial air conditioning, with mature technology, and accessories can be purchased and maintained at any time in the market, with very low maintenance costs.

product type

1. Tc-dr type, working pressure is about 6kpa, evaporation temperature is about 40 ℃, suitable for scaling, precipitation, corrosion and other conditions.

2. Tc-gr type, with working pressure of about 5kpa and evaporation temperature of about 30 ℃, can clean the evaporation chamber and provide higher concentration of heavy phase liquid.

Schematic diagram

Technical data of processing capacity

TC R 0.5

0.5-1 Tons / day

200-250 Ton / year

TC R 1

1-2  Tons / day

250-500 Ton / year

TC R 2

2-3 Tons / day

500-900 Ton / year

TC R 4

3-5 Tons / day

900-1500 Ton / year

TC R 6

5-7 Tons / day

1500-2000 Ton / year

TC R 8

7-10 Tons / day

2000-3500 Ton / year

TC R 12

10-15 Tons / day

3500-4500 Ton / year

TC R 24

20-30 Tons / day

7000-8000 Ton / year

Material (corrosion resistance is the main performance of the evaporator, so it is very important to choose the right material in the treatment of concentrated solution)

Raw material composition:

1. Into evaporator: material composition: salt containing wastewater mainly composed of ammonium nitrate, with salt content of 0.6%, material pH 7.5-8.5;
2. Evaporator: material composition: ammonia nitrogen content meets the industrial water consumption index;

Operation index:

1. Feeding capacity: 300L / h, evaporation capacity: 280kg / h
2. Evaporation temperature: 40 ℃
3. Discharge temperature: normal temperature
4. Heating mode: Freon compression
5. Evaporator material: 316L
